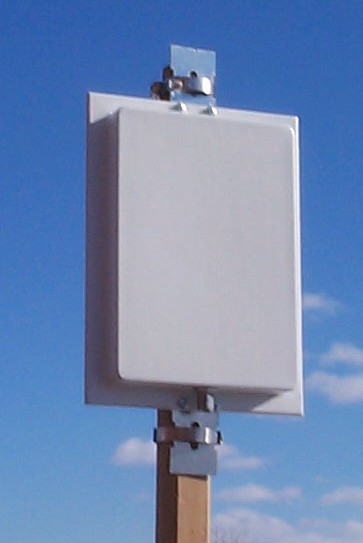

902-928MHz 10dBi H-Pol Sector Panel Antenna

Model Number: SPWC1H

Technical Specifications

No
ITEM
TYPICAL
REMARKS
1 Frequency Range 902 ¾ 928 MHz
2 Impedance 50 W
3 VSWR (or Return Loss) < 1.5:1 ( or > 14dB)
4 Gain >10 dBi
5 Polarization Horizontal, Linear
6 3dB Horizontal Beamwidth 52 Degrees
7 3dB Vertical Beamwidth 66 Degrees
8 Front to Back Ratio >19dB
9 Max. Power Input 20W
10 Connector N/SMA Female, Bottom Feed Or Custom Design
11 Appearance Panel Type
12 Size 8.5 x 11.5 x 1 [inch]
13 Housing Material Powder Coated Aluminum
14 Radom Material ABS with UV Protection
15 Radom Color White
16  Case Design Water Resistance
17 Weight 1.5 Lb
18 Wind Loading (Frontal) 10 Kg 200km/h
19 Temperature Range -45 to +75 Degrees
20 Storage Temperature -30 to +75 Degrees
21 DC Ground Option No DC Ground
22  Mounting Hardware Clamp Set
23 Life Expectancy 20 years



E-Plane Radiation Pattern



H-Plane Radiation Pattern
