| No |
ITEM
|
TYPICAL
|
REMARKS
|
| 1 |
Frequency Range |
5100 ¾
5900 MHz |
|
| 2 |
Impedance |
50 W |
|
| 3 |
VSWR (or Return Loss) |
< 1.5:1 ( or > 14dB) |
|
| 4 |
Gain |
17 dBi @ V-Pol
17 dBi @ H-Pol |
|
| 5 |
Polarization |
V-Pol & H-Pol, Linear |
|
| 6 |
3dB Horizontal Beamwidth |
32 Deg @ V-pol
33 Deg @ H-pol |
|
| 7 |
3dB Vertical Beamwidth |
16 Deg @ V-pol
15 Deg @ H-pol |
|
| 8 |
Max. Power Input |
20W |
|
| 9 |
Connector |
2 x Female N-Type, Bottom Feed |
Or Custom Design |
| 10 |

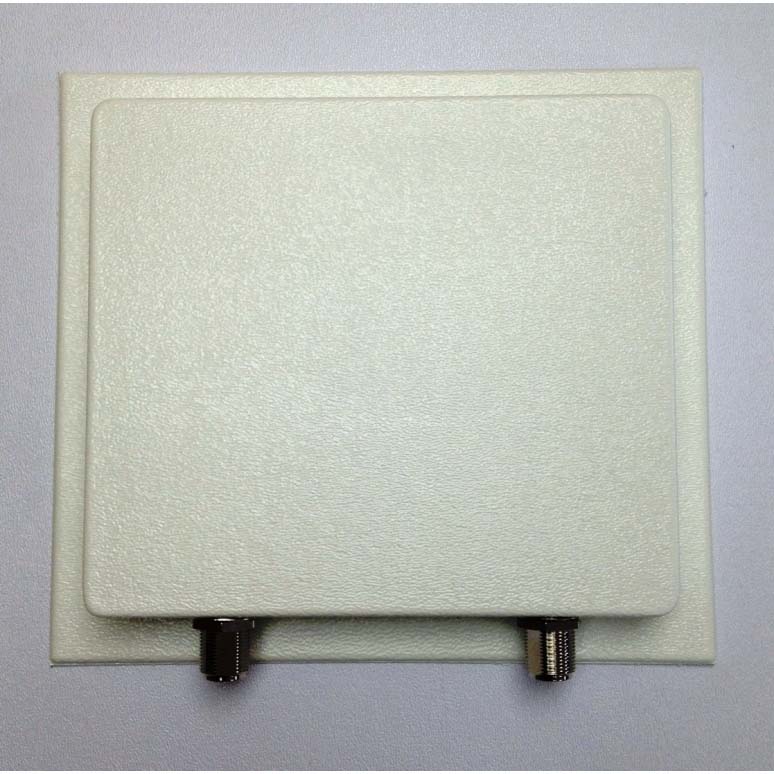

Appearance |
Panel Type |
|
| 11 |
Size |
8.5 x
8
x
1 [inch] |
|
| 12 |
Housing Material |
Powder Coated Aluminum |
|
| 13 |
Radom Material |
ABS with UV Protection |
|
| 14 |
Radom Color |
White |
|
| 15 |
Case Design |
Water Resistance |
|
| 16 |
Weight |
400g |
|
| 17 |
Wind Loading (Frontal) |
> 10Kg |
200km/h |
| 18 |
Temperature Range |
-45 to +75 Degrees |
|
| 19 |
Storage Temperature |
-30 to +75 Degrees |
|
| 20 |
Lighting Protection |
Direct Grounding |
|
| 21 |
Mounting Hardware |
Clamp Set |
|
| 22 |
Life Expectancy |
20 years |
|
