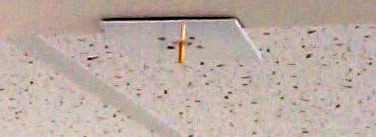

5.8GHz 2.8dBi Ceiling Mount Omni-directional Antenna
Model Number: SPMK1OC
|
 |
Technical Specifications
| No |
ITEM
|
TYPICAL
|
REMARKS
|
| 1 |
Frequency Range |
5100 – 5900 MHz |
|
| 2 |
Impedance |
50 W |
|
| 3 |
VSWR (or Return Loss) |
£
1.5:1 ( or ³ 14dB) |
|
| 4 |
Gain |
2.8dBi |
|
| 5 |
Polarization |
Vertical, Linear |
|
| 6 |
3dB Horizontal Beamwidth |
360° |
|
| 7 |
Max. Power Input |
20W |
|
| 8 |
Connector |
Female N |
Or Custom Design |
| 9 |
Appearance |
See attached drawing |
|
| 10 |
Size |
3 ´
3 [inch] |
|
| 11 |
Weight |
0.3 Lb |
|
| 12 |
Temperature Range |
-45 to +75 °
C |
|
| 13 |
Storage Temperature |
-30 to +75 °
C |
|
| 14 |
Life Expectancy |
20 years |
|
