2.4GHz 14dBi directional panel antenna

Model Number: SPLG22

Technical Specifications

No
ITEM
TYPICAL
REMARKS
1 Frequency Range 2400 ¾ 2483 MHz
2 Impedance 50 W
3 VSWR (or Return Loss) < 1.5:1 ( or > 14dB)
4 Gain >14dBi
5 Polarization Vertical, Linear

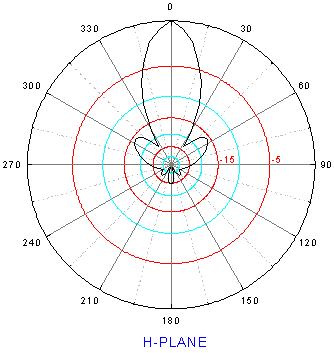

6 3dB Horizontal Beamwidth 33 Degrees See attached plot

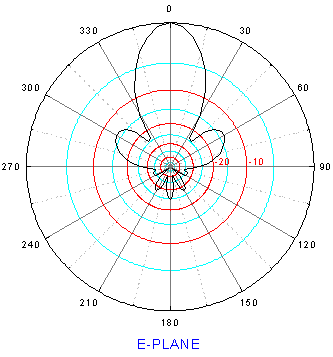

7 3dB Vertical Beamwidth 33 Degrees See attached plot
8 Front to Back Ratio > 20dB
9 Max. Power Input 20W
10 Connector N or SMA Female, Bottom Feed Or Custom Design

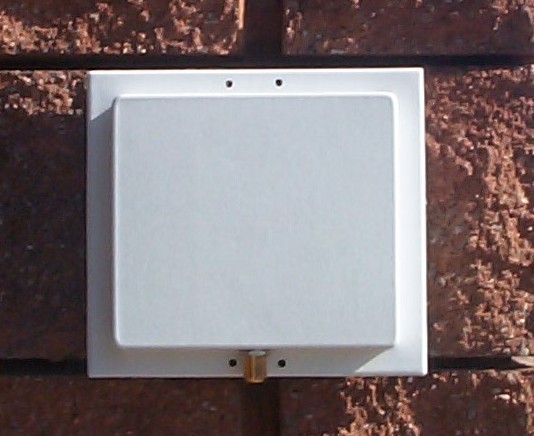

11 Appearance Panel Type
12 Size 8 x 8.5 x 1 [inch]
13 Housing Material Powder Coated Aluminum
14 Radom Material ABS with UV Protection
15 Radom Color White
16  Case Design Water Resistance
17 Weight 2 Lb
18 Wind Loading (Frontal) > 10Kg 200km/h
19 Temperature Range -45 to +75 Degrees
20 Storage Temperature -30 to +75 Degrees
21 Lighting Protection Direct Grounding
22  Mounting Hardware Clamp Set
23 Life Expectancy 20 years
