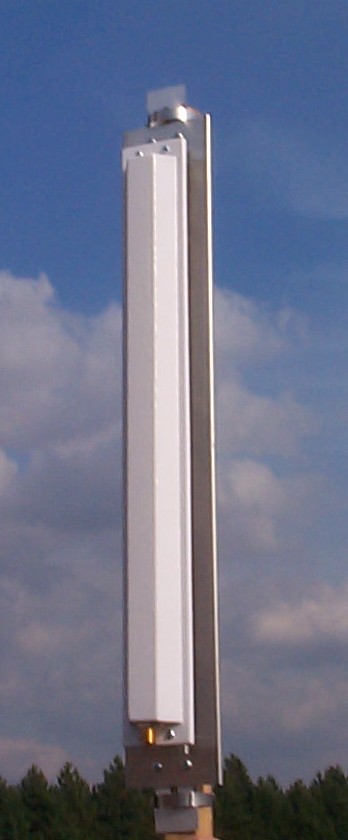

H-Pol. 2.4GHz 13.5dBi 120 degree Sector Panel Antenna

Model Number: SPHSG4T


Technical Specifications
No
ITEM
TYPICAL
REMARKS
1 Frequency Range 2400 – 2483 MHz
2 Impedance 50 W
3 VSWR (or Return Loss) £ 1.5:1 ( or ³ 14dB)
4 Gain ³ 13.5dBi
5 Polarization Horizontal, Linear
6 3dB Horizontal Beamwidth 120°   See attached plot
7 3dB Vertical Beamwidth 12°   See attached plot
8 Front to Back Ratio ³ 20dB  See attached plot
9 Max. Power Input 20W
10 Connector N/SMA Female, Bottom-Feed Or Custom Design
11 Appearance Panel Type
12 Size 28.2´ 4.5´ 4 [inch]
13 Housing Material Aluminum
14 Radome Material ASA with UV Protection
15  Radome Color White
16 Case Design Water Resistance
17 Weight 3 Lb
18 Wind Loading (Frontal) ³ 5Kg 200km/h
19 Temperature Range -45 to +75 ° C
20 Storage Temperature -30 to +75 ° C
21 Sensing Resistor or
DC-Ground
Yes
22 Mounting Hardware Gear Clamp
23 Life Expectancy 20 years




E-Plane Radiation Pattern
