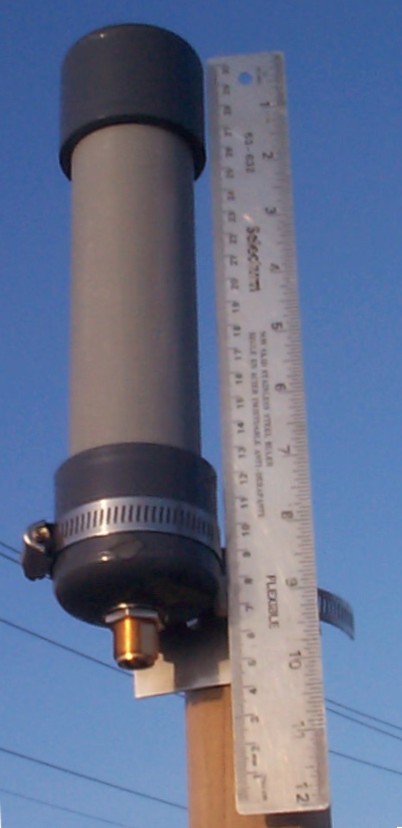

2.4GHz 3.2dBi Horizontal Polarized Omni-directional antenna
 SPHSG1O |
 SPHSG1OP |
Technical Specifications
| No |
|
|
|
| 1 | Frequency Range | 2400 ¾ 2483 MHz | |
| 2 | Impedance | 50 W | |
| 3 | VSWR (or Return Loss) | < 1.5:1 ( or > 14dB) | |
| 4 | Gain | >3.2dBi | |
| 5 | Polarization | Horizontal, Linear | |
| 6 | X-Pol | <-20dB | |
| 7 | 3dB Horizontal Beamwidth | 360 Degrees | |
| 7 | 3dB Vertical Beamwidth | 45 Degrees | |
| 8 | Max. Power Input | 20W | |
| 9 | Connector | N female, Bottom Feed | Or Custom Design |
| 10 | Appearance | Pipe Type | |
| 11 | Size | 10.5 x2 [inch] | |
| 12 | Radom Material | PVC | |
| 13 | Radom Color | Gray | |
| 14 | Case Design | Water Resistance | |
| 15 | Weight | 0.5 Lb | |
| 16 | Wind Loading (Frontal) | > 10Kg | 200km/h |
| 17 | Temperature Range | -45 to +75 Degrees | |
| 18 | Storage Temperature | -30 to +75 Degrees | |
| 19 | Lighting Protection | Direct Grounding | |
| 20 | Mounting Hardware | Clamp Set | |
| 21 | Life Expectancy | 20 years |
