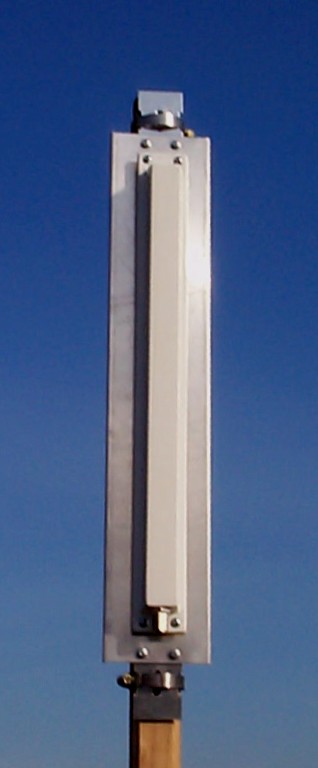

4.4-5.0GHz 14dBi 90 degree Sector Panel Antenna

Model Number: SPDP8F

Technical Specifications
No
ITEM
TYPICAL
REMARKS
1 Frequency Range 4400 – 5000 MHz
2 Impedance 50 W
3 VSWR (or Return Loss) £ 1.5:1 ( or ³ 14dB)
4 Gain ³ 14 dBi
5 Polarization Vertical, Linear
6 3dB Horizontal Beamwidth 90°
7 3dB Vertical Beamwidth 11°
8 Front to Back Ratio ³ 33dB
9 Max. Power Input 20W
10 Connector N-Type, Bottom-Feed Or Custom Design
11 Appearance Panel Type
12 Size 22.5´ 4.4´ 2 [inch]
13 Housing Material Powder Coated Aluminum
14 Radome Material ASA with UV Protection
15  Radome Color Gray or White
16 Case Design Water Resistance
17 Weight 2 LB
18 Wind Loading (Frontal) ³ 2Kg 200km/h
19 Temperature Range -45 to +75 ° C
20 Storage Temperature -30 to +75 ° C
21 Sensing Resistor or
DC-Ground		 Yes
22 Mounting Hardware Gear Clamp
23 Life Expectancy 20 years
