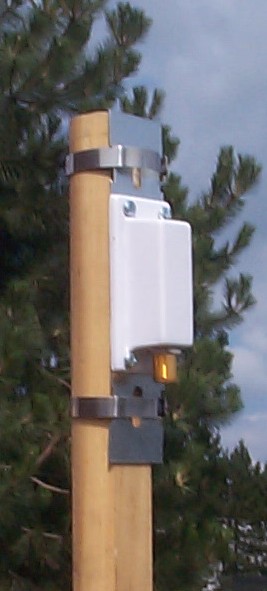

5.8GHz 11.5dBi 60 degree panel antenna
Model Number: SPDJ2S |
 |
Technical Specifications
| No |
|
|
|
| 1 | Frequency Range | 5700 ¾ 5900 MHz | |
| 2 | Impedance | 50 W | |
| 3 | VSWR (or Return Loss) | < 1.5:1 ( or > 14dB) | |
| 4 | Gain | >11.5 dBi | |
| 5 | Polarization | Vertical, Linear | |
| 6 | 3dB Horizontal Beamwidth | 60 Degrees | |
| 7 | 3dB Vertical Beamwidth | 30 Degrees | |
| 8 | Front to Back Ratio | >22dB | |
| 9 | Max. Power Input | 20W | |
| 10 | Connector | N/SMA female, Bottom Feed | Or Custom Design |
| 11 | Appearance | Panel Type | |
| 12 | Size | 4.4 x 2 x 1 [inch] | |
| 13 | Housing Material | Powder Coated Aluminum | |
| 14 | Radom Material | ABS with UV Protection | |
| 15 | Radom Color | White | |
| 16 | Case Design | Water Resistance | |
| 17 | Weight | 100g | |
| 18 | Wind Loading (Frontal) | > 10Kg | 200km/h |
| 19 | Temperature Range | -45 to +75 Degrees | |
| 20 | Storage Temperature | -30 to +75 Degrees | |
| 21 | Lighting Protection | Direct Grounding | |
| 22 | Mounting Hardware | Clamp Set | |
| 23 | Life Expectancy | 20 years |
