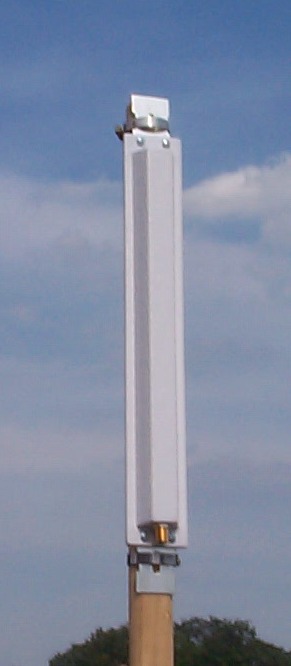

2.4GHz 13dBi 90 ° Sector Panel Antenna with 3 ° E-Downtilt

Model Number: SPDG6F-D3

Technical Specifications
No
ITEM
TYPICAL
REMARKS
1 Frequency Range 2400 – 2483 MHz
2 Impedance 50 W
3 VSWR (or Return Loss) £ 1.5:1 ( or ³ 14dB)
4 Gain ³ 13dBi
5 Polarization Vertical, Linear
6 3dB Horizontal Beamwidth 90°   See attached plot
7 3dB Vertical Beamwidth 14°with 3 ° E-downtilt  See attached plot
8 Front to Back Ratio ³ 18dB  See attached plot
9 Max. Power Input 20W
10 Connector N-Type, Bottom-Feed Or Custom Design
11 Appearance Panel Type
12 Size 19.7´ 2´ 1 [inch]
13 Housing Material Powder Coated Aluminum
14 Radome Material ASA with UV Protection
15  Radome Color Gray or White
16 Case Design Water Resistance
17 Weight 1.5 Lb
18 Wind Loading (Frontal) ³ 2Kg 200km/h
19 Temperature Range -45 to +75 ° C
20 Storage Temperature -30 to +75 ° C
21 Sensing Resistor or
DC-Ground
Yes
22 Mounting Hardware Gear Clamp
23 Life Expectancy 20 years
