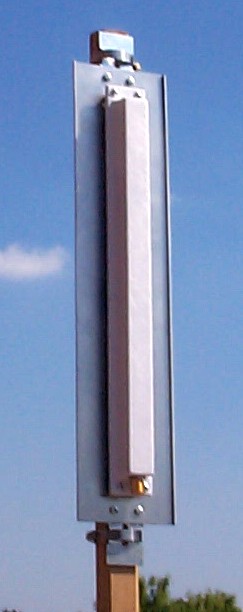

2.4GHz 12.2dBi 120 degree sector panel antenna

Model Number: SPDG16T2

Technical Specifications
No
ITEM
TYPICAL
REMARKS
1 Frequency Range 2400 – 2483 MHz
2 Impedance 50 W
3 VSWR (or Return Loss) £ 1.5:1 ( or ³ 14dB)
4 Gain 12.2dBi
5 Polarization Vertical, Linear
6 3dB Horizontal Beamwidth 120°   See attached plot
7 3dB Vertical Beamwidth 14°   See attached plot
8 Front to Back Ratio ³ 30dB  See attached plot
9 Max. Power Input 20W
10 Connector N/SMA Female, Bottom-Feed Or Custom Design
11 Appearance Panel Type
12 Size 22.3 ´ 5 ´ 2 [inch]
13 Radome Material ASA with UV Protection
14  Radome Color White
15 Case Design Water Resistance
16 Weight 2 Lb
17 Wind Loading (Frontal) ³ 5Kg 200km/h
18 Temperature Range -45 to +75 ° C
19 Storage Temperature -30 to +75 ° C
20 DC-Ground Yes Or Custom Design
21 Mounting Hardware Gear Clamp
22 Life Expectancy 20 years
