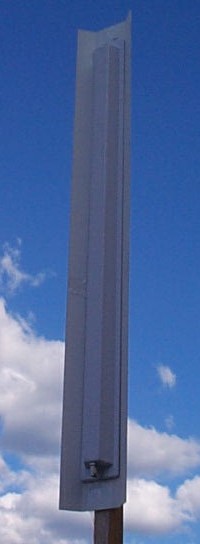

2.4GHz 16.5dBi 60 degree sector panel antenna
Model Number: SPDG16S
|
 |
Technical Specifications
| No |
ITEM
|
TYPICAL
|
REMARKS
|
| 1 |
Frequency Range |
2400 ¾
2483 MHz |
|
| 2 |
Impedance |
50 W |
|
| 3 |
VSWR (or Return Loss) |
< 1.5:1 ( or > 14dB) |
|
| 4 |
Gain |
> 16.5dBi |
|
| 5 |
Polarization |
Vertical, Linear |
|
| 6 |
3dB Horizontal Beamwidth |
60 Degrees |
|
| 7 |
3dB Vertical Beamwidth |
9 Degrees |
|
| 8 |
Front to Back Ratio |
> 28dB |
|
| 9 |
Max. Power Input |
20W |
|
| 10 |
Connector |
N female, Bottom Feed |
Or Custom Design |
| 11 |
Appearance |
Panel Type |
|
| 12 |
Size |
5.2 x
41.5
x
2.8 [inch] |
|
| 13 |
Housing Material |
Powder Coated Aluminum |
|
| 14 |
Radom Material |
ABS with UV Protection |
|
| 15 |
Radom Color |
White |
|
| 16 |
Case Design |
Water Resistance |
|
| 17 |
Weight |
4 Lb |
|
| 18 |
Wind Loading (Frontal) |
> 10Kg |
200km/h |
| 19 |
Temperature Range |
-45 to +75 Degrees |
|
| 20 |
Storage Temperature |
-30 to +75 Degrees |
|
| 21 |
Lighting Protection |
Direct Grounding |
|
| 22 |
Mounting Hardware |
Clamp Set |
|
| 23 |
Life Expectancy |
20 years |
|
