2.4GHz 7.5dBi 180 degree Sector Panel Antenna

Model Number: SPDG13H

Technical Specifications
No
ITEM
TYPICAL
REMARKS
1 Frequency Range 2400 – 2483 MHz
2 Impedance 50 W
3 VSWR (or Return Loss) £ 1.5:1 ( or ³ 14dB)
4 Gain 7.5dBi
5 Polarization Vertical, Linear
6 3dB Horizontal Beamwidth 180°   See attached plot
7 3dB Vertical Beamwidth 24°   See attached plot
8 Front to Back Ratio ³ 4.2dB  See attached plot
9 Max. Power Input 20W
10 Connector N/SMA Female, Bottom-Feed Or Custom Design
11 Appearance Panel Type
12 Size 52´ 282´ 30 [mm]
13 Radome Material ASA with UV Protection
14  Radome Color White
15 Case Design Water Resistance
16 Weight 1 Lb
17 Wind Loading (Frontal) ³ 5Kg 200km/h
18 Temperature Range -45 to +75 ° C
19 Storage Temperature -30 to +75 ° C
20 DC-Ground Yes Or Custom Design
21 Mounting Hardware Gear Clamp
22 Life Expectancy 20 years

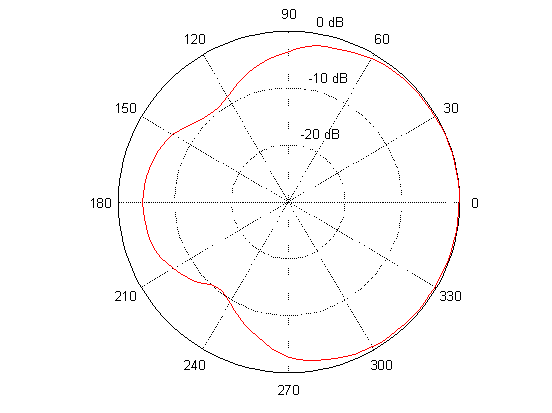

Radiation Pattern (H-Plane)

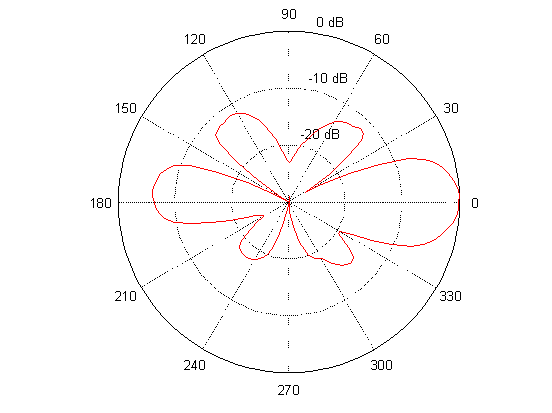

Radiation Pattern (E-Plane)
