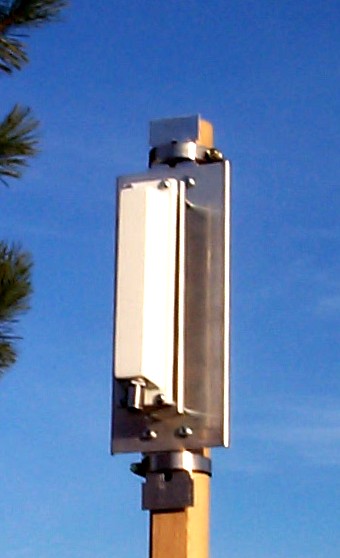

WiFi 2.4GHz 7.1dBi 180 degree Sector Panel Antenna
Model Number: SPDG12H22 |
 |
| No |
|
|
|
| 1 | Frequency Range | 2400 – 2483 MHz | |
| 2 | Impedance | 50 W | |
| 3 | VSWR (or Return Loss) | £ 1.5:1 ( or ³ 14dB) | |
| 4 | Gain | 7.1dBi | |
| 5 | Polarization | Vertical, Linear | |
| 6 | 3dB Horizontal Beamwidth | 180° | See attached plot |
| 7 | 3dB Vertical Beamwidth | 40° | See attached plot |
| 8 | Front to Back Ratio | ³ 22dB | See attached plot |
| 9 | Max. Power Input | 20W | |
| 10 | Connector | N/SMA Female, Bottom-Feed | Or Custom Design |
| 11 | Appearance | Panel Type | |
| 12 | Size | 10.8´ 4.5´ 4 [inch] | |
| 13 | Radome Material | ASA with UV Protection | |
| 14 | Radome Color | White | |
| 15 | Case Design | Water Resistance | |
| 16 | Weight | 1 Lb | |
| 17 | Wind Loading (Frontal) | ³ 5Kg | 200km/h |
| 18 | Temperature Range | -30 to +75 ° C | |
| 19 | Storage Temperature | -45 to +75 ° C | |
| 20 | DC-Ground | Yes | Or Custom Design |
| 21 | Mounting Hardware | Gear Clamp | |
| 22 | Life Expectancy | 20 years |
