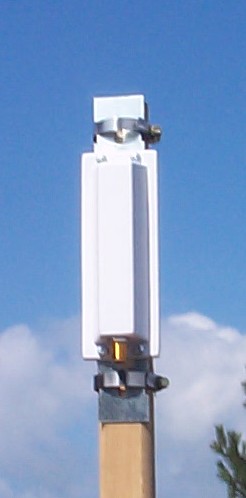

2.4GHz 9.5dBi 90 degree Sector Panel Antenna
Model Number: SPDG12F |
 |
| No |
|
|
|
| 1 | Frequency Range | 2400 – 2483 MHz | |
| 2 | Impedance | 50 W | |
| 3 | VSWR (or Return Loss) | £ 1.5:1 ( or ³ 14dB) | |
| 4 | Gain | ³ 9.5dBi | |
| 5 | Polarization | Vertical, Linear | |

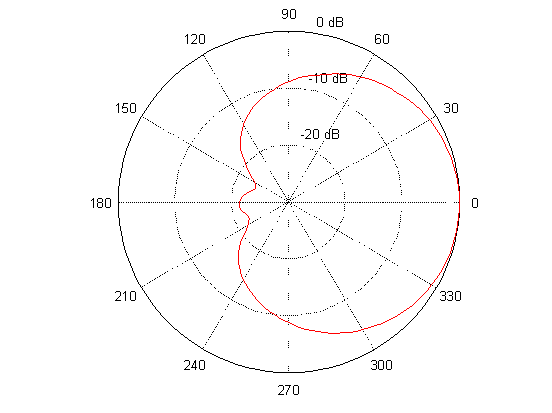

| 6 | 3dB Horizontal Beamwidth | 90° | See attached plot |

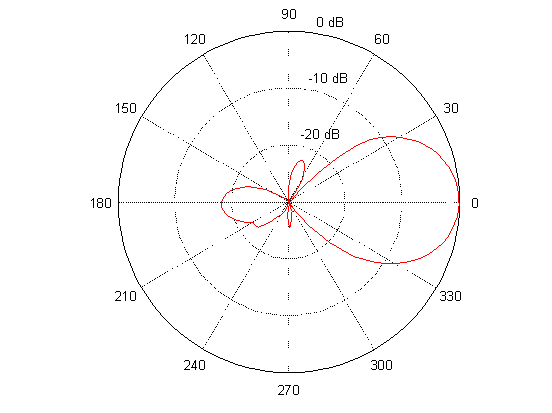

| 7 | 3dB Vertical Beamwidth | 38° | See attached plot |
| 8 | Front to Back Ratio | ³ 15dB | See attached plot |
| 9 | Max. Power Input | 20W | |
| 10 | Connector | N/SMA Female, Bottom Feed | Or Custom Design |
| 11 | Appearance | Panel Type | |
| 12 | Size | 74´ 198´ 30 [mm] | |
| 13 | Housing Material | Powder Coated Aluminum | |
| 14 | Radome Material | ASA with UV Protection | |
| 15 | Radome Color | Gray or White | |
| 16 | Case Design | Water Resistance | |
| 17 | Weight | 0.5 Lb | |
| 18 | Wind Loading (Frontal) | ³ 5Kg | 200km/h |
| 19 | Temperature Range | -45 to +75 ° C | |
| 20 | Storage Temperature | -30 to +75 ° C | |
| 21 | Sensing Resistor or
DC-Ground |
Yes | |
| 22 | Mounting Hardware | Gear Clamp | |
| 23 | Life Expectancy | 20 years |
