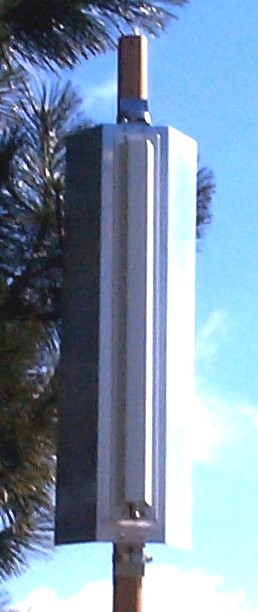

902-928MHz 10dBi 120 Deg Sector Panel Antenna
Model Number: SPDC3T |
 |
Technical Specifications
| No |
|
|
|
| 1 | Frequency Range | 902 ¾ 928 MHz | |
| 2 | Impedance | 50 W | |
| 3 | VSWR (or Return Loss) | < 1.5:1 ( or > 14dB) | |
| 4 | Gain | >10dBi | |
| 5 | Polarization | Vertical, Linear | |
| 6 | 3dB Horizontal Beamwidth | 120 Degrees | |
| 7 | 3dB Vertical Beamwidth | 24 Degrees | |
| 8 | Front to Back Ratio | >21dB | |
| 9 | Max. Power Input | 20W | |
| 10 | Connector | N/SMA Female, Bottom Feed | Or Custom Design |
| 11 | Appearance | Panel Type | |
| 12 | Size | 28.2 x 7 x 8 [inch] | |
| 13 | Housing Material | Powder Coated Aluminum | |
| 14 | Radom Material | ABS with UV Protection | |
| 15 | Radom Color | White | |
| 16 | Case Design | Water Resistance | |
| 17 | Weight | 4 Lb | |
| 18 | Wind Loading (Frontal) | 10 Kg | 200km/h |
| 19 | Temperature Range | -45 to +75 Degrees | |
| 20 | Storage Temperature | -30 to +75 Degrees | |
| 21 | DC Ground Option | DC Grounded | |
| 22 | Mounting Hardware | Clamp Set | |
| 23 | Life Expectancy | 20 years |
