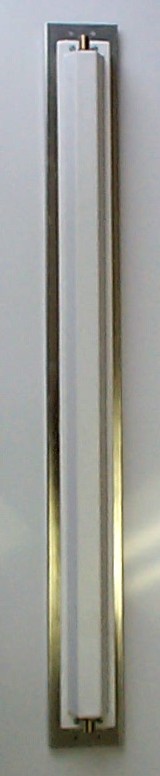

Dual-Band/Dual-Pol 2.4GHz & 5.8GHz 120 degree sector panel antenna
Model Number: SPD-GSH2T-J12T
| No |
|
|
|
| 1 | Frequency Range | 2400 – 2483 MHz & 5700 – 5900 MHz | |
| 2 | Impedance | 50 W | |
| 3 | VSWR (or Return Loss) | £ 1.5:1 ( or ³ 14dB) | |
| 4 | Gain | 11.2 dBi @ 2.4GHz / 14dBi @ 5.8GHz | |
| 5 | Polarization | Horizontal @ 2.4GHz Vertical @ 5.8GHz |
|
| 6 | 3dB Horizontal Beamwidth | 120° | See attached plot |
| 7 | 3dB Vertical Beamwidth | 30° @ 2.4GHz / 8° @ 5.8GHz | See attached plot |
| 8 | Front to Back Ratio | ³20dB @ 2.4GHz / 28dB @ 5.8GHz | See attached plot |
| 9 | Max. Power Input | 20W | |
| 10 | Connector | Female N, Bottom & Top connectors | Or Custom Design |
| 11 | Appearance | Panel Type | |
| 12 | Size | 37.5 ´ 4 ´ 2 [inch] | |
| 13 | Radome Material | ASA with UV Protection | |
| 14 | Radome Color | White | |
| 15 | Case Design | Water Resistance | |
| 16 | Weight | 3 Lb | |
| 17 | Wind Loading (Frontal) | ³ 5Kg | 200km/h |
| 18 | Temperature Range | -45 to +75 ° C | |
| 19 | Storage Temperature | -30 to +75 ° C | |
| 20 | Sensing Resistor or
DC-Ground |
Yes | |
| 21 | Mounting Hardware | Gear Clamp | |
| 22 | Life Expectancy | 20 years |
