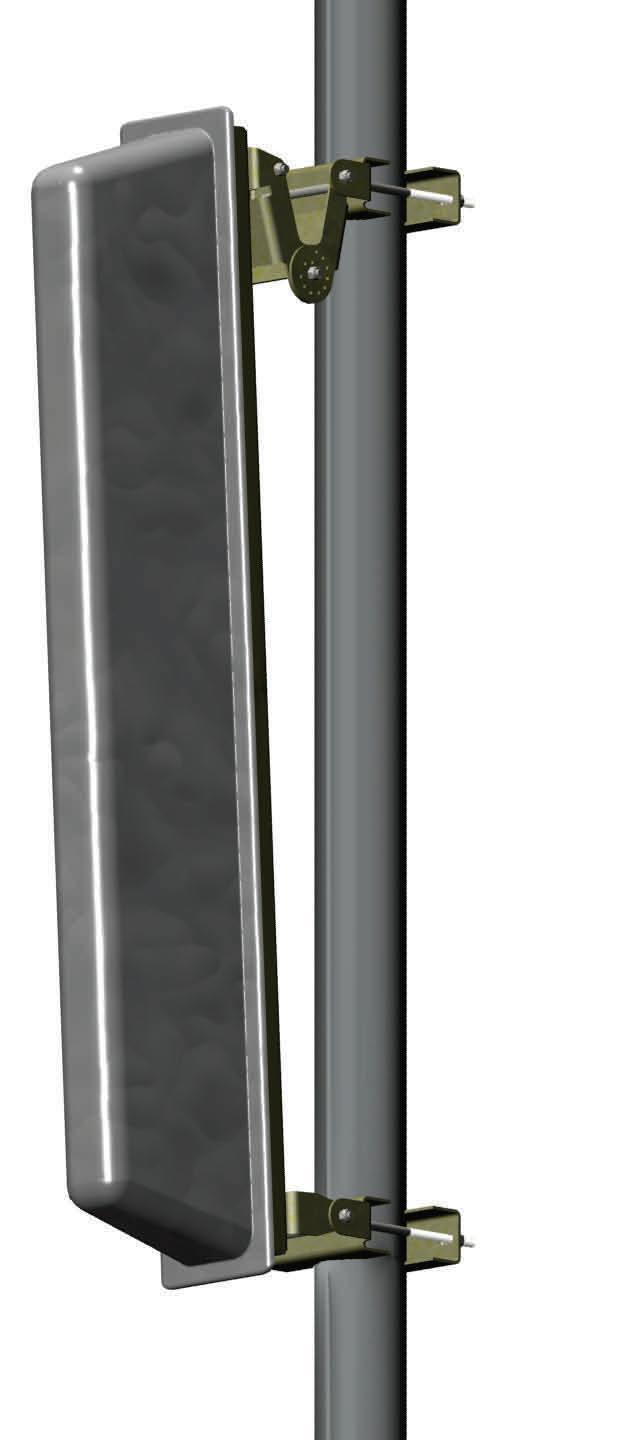

806-960MHz 14.3dBi 90 Deg Sector Panel Antenna

Model Number: SPAB14F

Technical Specifications

No
ITEM
TYPICAL
REMARKS
1 Frequency Range 806 ¾ 960 MHz
2 Impedance 50 W
3 VSWR (or Return Loss) < 1.5:1 ( or > 14dB)
4 Gain >14.3dBi
5 Polarization Vertical, Linear
6 3dB Horizontal Beamwidth 90 Degrees
7 3dB Vertical Beamwidth 16 Degrees
8 Front to Back Ratio >35dB
9 Max. Power Input 500W
10 Connector 7/16 DIN Female, N-Female
11 Appearance Panel Type
12 Size 48 x 8.7 x 6.4 [inch]
13 Housing Material Powder Coated Aluminum
14 Radom Material Gray UV Stabilized Plastic
15 Radom Color Grey
16  Case Design Water Resistance
17 Weight 9.7 Lb (4.4 kg)
18 Wind Loading (Frontal) 10 Kg 200km/h
19 Temperature Range -45 to +75 Degrees
20 Storage Temperature -30 to +75 Degrees
21 DC Ground Option DC Grounded
22  Mounting Hardware Pole mount; 10 deg, mechanical tilt
23 Life Expectancy 20 years




Radiation Pattern (H-Plane)



Radiation Pattern (E-Plane)
