802.11N MIMO 2.4GHz 9dBi 120 degree Sector Panel Antenna
Model Number: SP-MIMO-DG2T
Technical Specifications
| No |
ITEM
|
TYPICAL
|
REMARKS
|
| 1 |
Frequency Range |
2400 – 2483 MHz |
|
| 2 |
Impedance |
50 W |
|
| 3 |
VSWR (or Return Loss) |
£
1.5:1 ( or ³ 14dB) |
|
| 4 |
Gain |
³
9dBi |
|
| 5 |
Polarization |
Vertical, Linear |
|
| 6 |
3dB Horizontal Beamwidth |
120° |
See attached
plot |
| 7 |
3dB Vertical Beamwidth |
40° |
See attached
plot |
| 8 |
Front to Back Ratio |
³
15dB |
See attached
plot |
| 9 |
Max. Power Input |
20W |
|
| 10 |
Connector |
N Female, Bottom-Feed |
Or Custom Design |
| 11 |
Appearance |
Panel Type |
|
| 12 |
Size |
8.5x11.5x1 Inch |
|
| 13 |
Housing Material |
Powder Coated Aluminum |
|
| 14 |
Radome Material |
ASA with UV Protection |
|
| 15 |
Radome Color |
White |
|
| 16 |
Case Design |
Water Resistance |
|
| 17 |
Weight |
1.5 Lb |
|
| 18 |
Wind Loading (Frontal) |
³
5Kg |
200km/h |
| 19 |
Temperature Range |
-45 to +75 °
C |
|
| 20 |
Storage Temperature |
-30 to +75 °
C |
|
| 21 |
DC-Ground |
Yes |
Or Custom Design |
| 22 |
Mounting Hardware |
Gear Clamp |
|
| 23 |
Life Expectancy |
20 years |
|

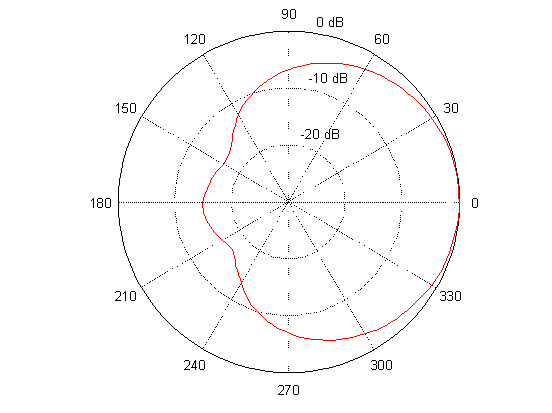

Radiation Pattern (H-Plane)

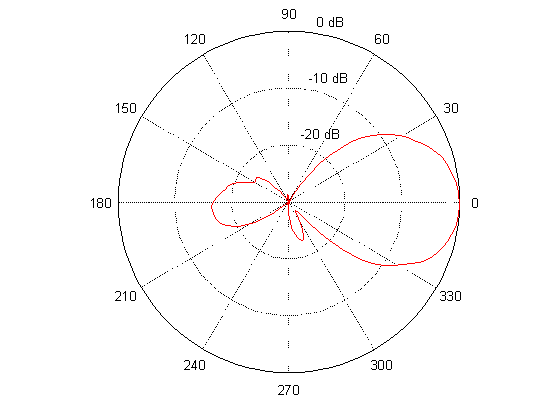

Radiation Pattern (E-Plane)
