802.11N MIMO Three-Port 2400-2483MHz 7.5dBi 90 Degrees Panel Antenna

Model Number: SP-MIMO-DG1F

Technical Specifications
No
ITEM
TYPICAL
REMARKS
1 Frequency Range 2400 – 2483 MHz
2 Impedance 50 W
3 VSWR (or Return Loss) £ 1.5:1 ( or ³ 14dB)
4 Gain ³ 7.5dBi
5 Polarization Vertical, Linear
6 3dB Horizontal Beamwidth 90°   See attached plot
7 3dB Vertical Beamwidth 60°   See attached plot
8 Front to Back Ratio ³ 14dB  See attached plot
9 Max. Power Input 20W
10 Connector N Female, Bottom Feed Or Custom Design
11 Appearance Panel Type
12 Size 4.8x11.5x1 [inch]
13 Housing Material Powder Coated Aluminum
14 Radome Material ASA with UV Protection
15  Radome Color Gray or White
16 Case Design Water Resistance
17 Weight 1.0 Lb
18 Wind Loading (Frontal) ³ 10Kg 200km/h
19 Temperature Range -45 to +75 ° C
20 Storage Temperature -30 to +75 ° C
21 Sensing Resistor or
DC-Ground
Yes
22 Mounting Hardware Gear Clamp
23 Life Expectancy 20 years

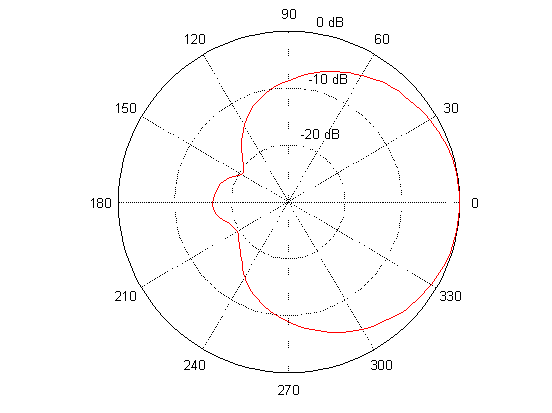

Radiation Pattern (H-Plane)

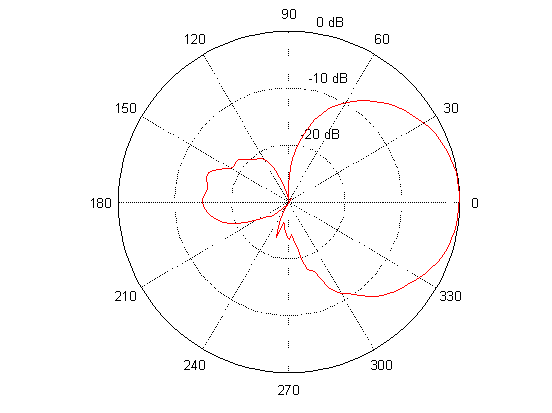

Radiation Pattern (E-Plane)
