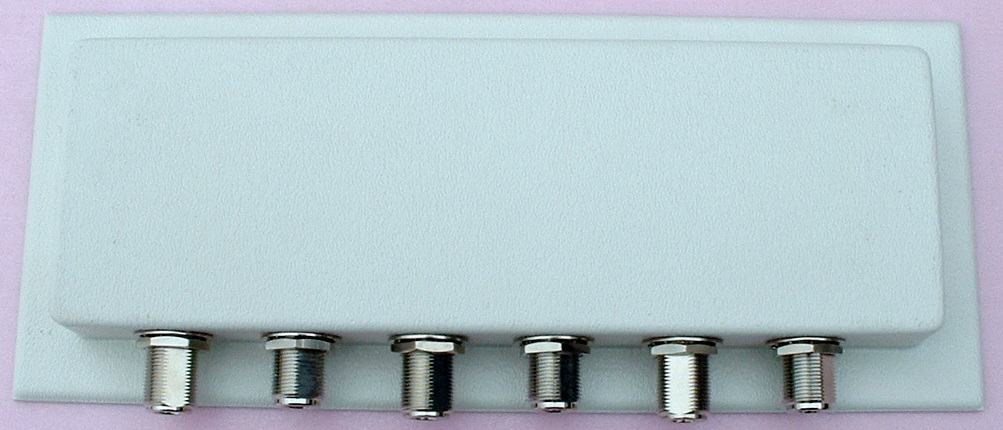

802.11a/b/g/n MIMO Six-Port DualBand 2400-2483MHz & 5100-5900MHz Panel Directional Antenna

Model Number: SP-GJ10D-6L

Technical Specifications
No
ITEM
TYPICAL
REMARKS
1 Frequency Range 2400 ~ 2483 MHz & 5100 ~ 5900 MHz
2 Impedance 50 W
3 VSWR (or Return Loss) £ 1.5:1 ( or ³ 14dB)
4 Gain 3 x 10.3 dBi @ 2.4GHz
3 x 9.5 dBi @ 5GHz

5 Polarization Vertical, Linear
6 3dB Horizontal Beamwidth 53 deg @ 2.4G    60 deg @ 5GHz
7 3dB Vertical Beamwidth 62 ° @ 2.4GHz   60° @ 5GHz
8 Max. Power Input 20W
9 Connector Female N Or Custom Design
10 Appearance Panel Type
11 Size 4.8x11.5x1 [inch]
12 Radome Material ASA with UV Protection
13  Radome Color White
14 Case Design Water Resistance
15 Weight 1.5 LB
16 Wind Loading (Frontal) ³ 5Kg 200km/h
17 Temperature Range -45 to +75 ° C
18 Storage Temperature -30 to +75 ° C
19 Sensing Resistor or
DC-Ground
Yes
20 Life Expectancy 20 years
