| No |
ITEM
|
TYPICAL
|
REMARKS
|
| 1 |
Frequency Range |
2400 ~ 2483 MHz |
|
| 2 |
Impedance |
50 Ω |
|
| 3 |
VSWR (or Return Loss) |
≤
1.5:1 ( or ≥ 14dB) |
|
| 4 |
Gain |
3x 6 dBi @ V-Pol
3x 6.7 dBi @ H-Pol |
|
| 5 |
Polarization |
V-pol & H-Pol, Linear |
|
| 6 |
3dB Horizontal Beamwidth |
180 deg @ V-Pol
180 deg @ H-Pol |
|
| 7 |
3dB Vertical Beamwidth |
40 deg @ V-Pol
40 deg @ H-Pol |
|
| 8 |
Max. Power Input |
20W |
|
| 9 |
Connector |
SMA Female. Bottom Feed |
Or Custom Design |
| 10 |

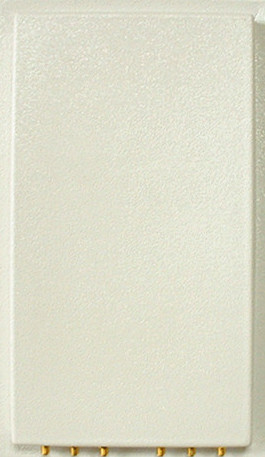

Appearance |
Panel |
|
| 11 |
Size |
14x8x1 [inches] |
|
| 12 |
Radome Material |
ASA with UV Protection |
|
| 13 |
Radome Color |
White |
|
| 14 |
Case Design |
Water Resistance |
|
| 15 |
Weight |
≥ 2 lb |
|
| 16 |
Wind Loading (Frontal) |
≥
10Kg |
200km/h |
| 17 |
Temperature Range |
-45 to +75 °
C |
|
| 18 |
Storage Temperature |
-30 to +75 °
C |
|
| 19 |
Sensing Resistor or
DC-Ground |
Yes |
|
| 20 |
Life Expectancy |
20 years |
|
