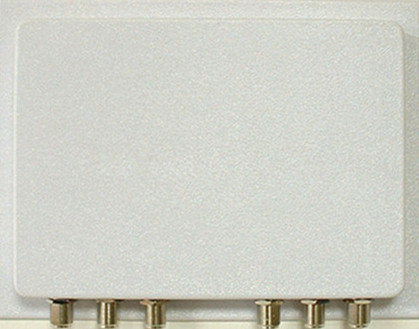

2.4GHz 9.5dBi Six Port 90 Degree MIMO Antenna

Model Number: SP-DG2F-6L

Technical Specifications
No
ITEM
TYPICAL
REMARKS
1 Frequency Range 2400 ~ 2483 MHz
2 Impedance 50 Ω
3 VSWR (or Return Loss) ≤ 1.5:1 ( or ≥ 14dB)
4 Gain 6 x 9.5 dBi
5 Polarization Vertical, Linear
6 3dB Horizontal Beamwidth 90 deg
7 3dB Vertical Beamwidth 38 deg
8 Front to Back Ratio ≥ 15dB
9 Max. Power Input 20W
10 Connector N/SMA Female. Bottom Feed Or Custom Design
11 Appearance Panel
12 Size 8.5x11.5x1 [inches]
13 Radome Material ASA with UV Protection
14  Radome Color White
15 Case Design Water Resistance
16 Weight ≥ 1 lb
17 Wind Loading (Frontal) ≥ 7Kg 200km/h
18 Temperature Range -45 to +75 ° C
19 Storage Temperature -30 to +75 ° C
20 Sensing Resistor or
DC-Ground		 Yes
21 Mounting Hardware Gear Clamp
22 Life Expectancy 20 years
