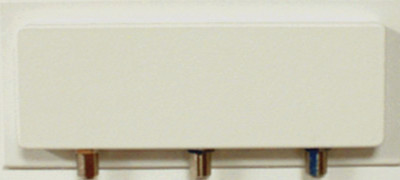

2.4GHz 2dBi Three Port Omni-directional MIMO Antenna

Model Number: SP-DG1O-3L

Technical Specifications
No
ITEM
TYPICAL
REMARKS
1 Frequency Range 2400 ~ 2483 MHz
2 Impedance 50 Ω
3 VSWR (or Return Loss) ≤ 1.5:1 ( or ≥ 14dB)
4 Gain 3 x 2 dBi
5 Polarization Vertical, Linear
6 3dB Horizontal Beamwidth 360 deg
7 3dB Vertical Beamwidth 90 deg
8 Max. Power Input 20W
9 Connector N/SMA Female. Bottom Feed Or Custom Design
10 Appearance Panel
11 Size 11.5x4.4x1 [inches]
12 Radome Material ASA with UV Protection
13  Radome Color White
14 Case Design Water Resistance
15 Weight ≥ 1 lb
16 Wind Loading (Frontal) ≥ 10Kg 200km/h
17 Temperature Range -45 to +75 ° C
18 Storage Temperature -30 to +75 ° C
19 Sensing Resistor or
DC-Ground		 Yes
20 Life Expectancy 20 years


Radiation Pattern (H-Plane)



Radiation Pattern (E-Plane)
