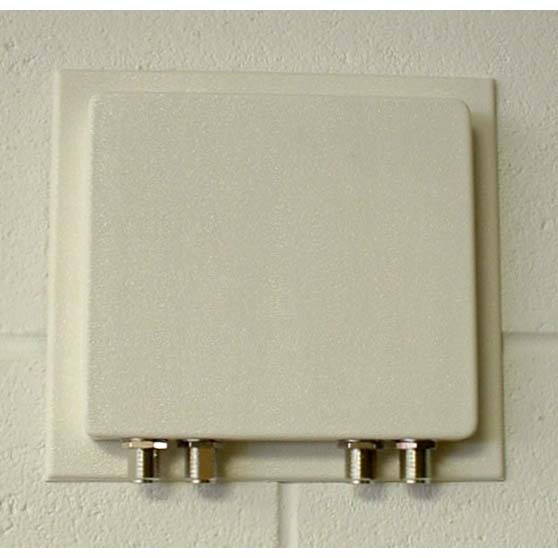

802.11N MIMO Four-Port DualBand 2400-2483MHz & 5100-5900MHz Sector antenna

(Each antenna is for the dual bands. Patented)

We also do different ports, beam and gain.

Model Number: SP-D1HJ1H-4L

Technical Specifications
No
ITEM
TYPICAL
REMARKS
1 Frequency Range 2400 – 2483 MHz & 5100 – 5900 MHz
2 Impedance 50 W
3 VSWR (or Return Loss) £ 1.5:1 ( or ³ 14dB)
4 Gain 4 x 3.5 dBi @ 2.4GHz
4 x 3.5dBi @ 5GHz
5 Polarization Vertical, Linear
6 3dB Horizontal Beamwidth

180 deg @ 2.4G

180 deg @ 5GHz


7 3dB Vertical Beamwidth

60° @ 2.4GHz

60° @ 5GHz


8 Front to Back Ratio ³20dB
9 Max. Power Input 20W
10 Connector 4 x Female N Or Custom Design
11 Appearance Panel Type
12 Size 8 x 8.5 x1 [inch]
13 Radome Material ASA with UV Protection
14  Radome Color White
15 Case Design Water Resistance
16 Weight 1.5 LB
17 Wind Loading (Frontal) ³ 5Kg 200km/h
18 Temperature Range -45 to +75 ° C
19 Storage Temperature -30 to +75 ° C
20 Sensing Resistor or
DC-Ground		 Yes
21 Mounting Hardware Gear Clamp
22 Life Expectancy 20 years
