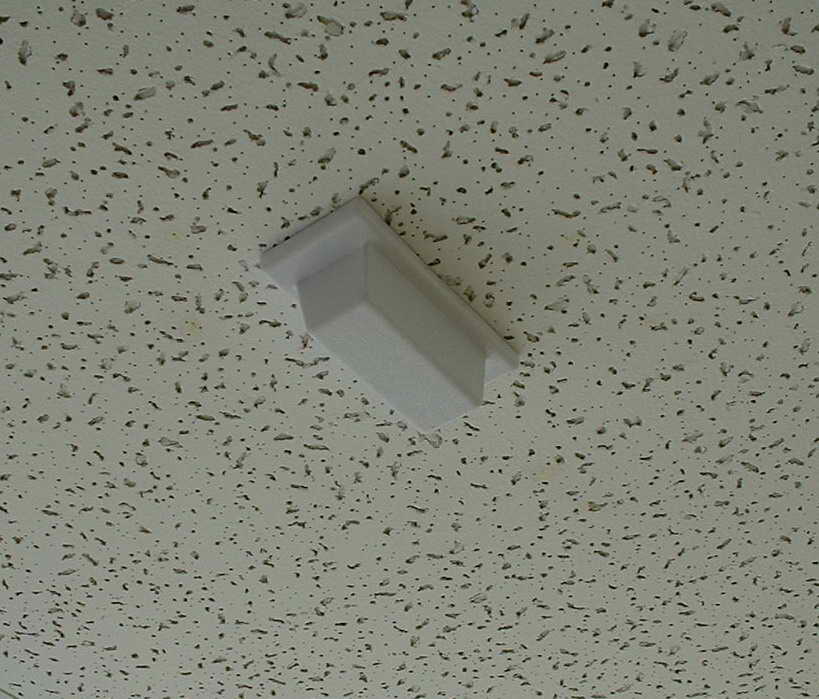

Ceiling Mount 5200-5900MHz 4.5dBi Omni Directional Panel Antenna (One Port)

Model Number: SP-CM-DJ20-1

Technical Specifications
No
ITEM
TYPICAL
REMARKS
1 Frequency Range 5200 - 5900 MHz
2 Impedance 50 W
3 VSWR (or Return Loss) £ 1.5:1 ( or ³ 14dB)
4 Gain 4.5dBi
5 Polarization Vertical, Linear
6 3dB Horizontal Beamwidth 360°
7 3dB Vertical Beamwidth 55°
9 Max. Power Input 20W
10 Connector N/SMA Female, Back Feed Or Custom Design
11 Appearance See attached drawing
12 Size 4.4 x 2.0 x 1 inch
14 Radome Material ASA with UV Protection
15  Radome Color White
16 Case Design Water Resistance
17 Weight 1.0 Lb
18 Wind Loading (Frontal) ³ 10Kg 200km/h
19 Temperature Range -45 to +75 ° C
20 Storage Temperature -30 to +75 ° C
21 Sensing Resistor or
DC-Ground		 DC-Grounded
22 Life Expectancy 20 years
